product description

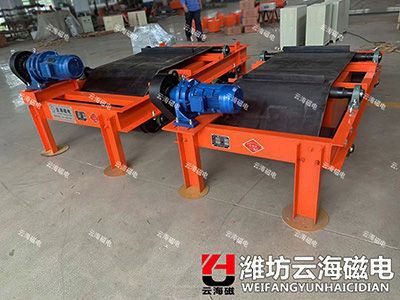

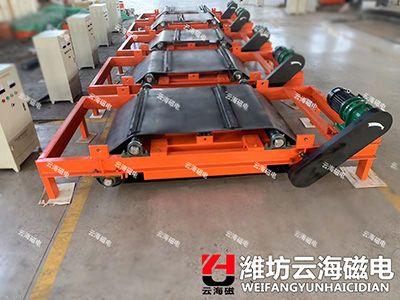

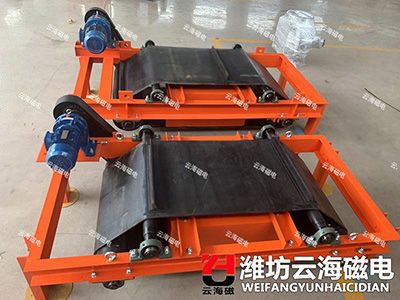

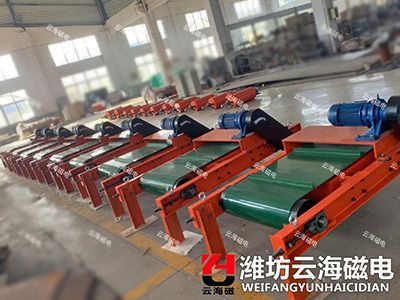

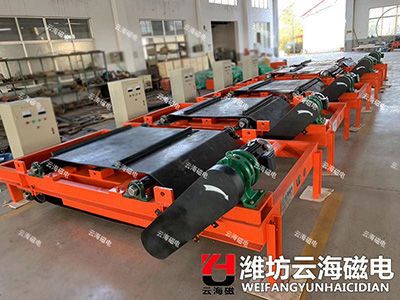

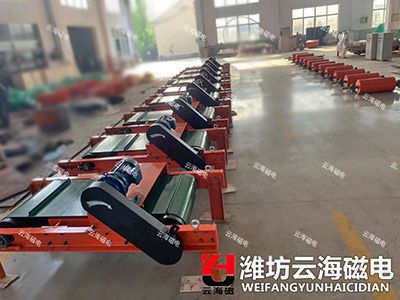

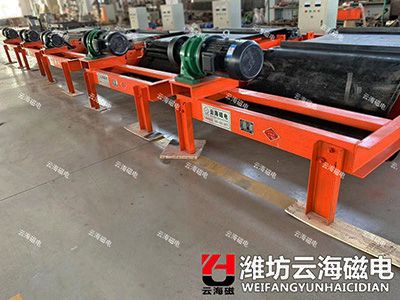

　　RCYD (C) series permanent magnet self-unloading iron remover is composed of high-performance permanent magnet core, iron-dissipating belt, geared motor, frame, roller and other parts, and is used with various conveyors. Used to automatically remove 0.1-45 kg of ferromagnetic material from non-magnetic materials. The internal magnetic circuit adopts computer simulation design and perfect double magnetic pole structure to ensure the long-term operation of the whole machine in a harsh environment without trouble.

◆The magnetic circuit adopts computer simulation design, perfect double magnetic pole structure, high magnetic field strength, large gradient and large suction force.

◆High-performance NdFeB is used as the magnetic source, the magnetic energy product is high, and it is not easy to demagnetize. The demagnetization is less than 5% in eight years.

◆The waist drum-shaped drum structure has automatic rectification function, fully sealed bearing seat, good sealing performance, and can adapt to various harsh environments.

◆The belt is automatically unloaded to ensure long-term trouble-free continuous operation.

◆The control part can be interlocked with the belt conveyor to realize local manual control and centralized control.
